Reducer / Buttweld Reducers Manufacturer & Supplier

An ISO 9001:2008 certified company, Vishal Tube take immensure pleasure in introducing itself as one of the leading manufacturer, stockiest & exporter of high quality Reducer / Buttweld Reducers, We also stock other Industrial & project materials such as Stainless Steel Tubing, Steel Pipes & Tubes, Capillary Pipes, Inconel 825 tubing, Nickel Tubing, Stainless Steel Bright Bars, Cold Rolled Steel Bars, 4140 Annealed Cold Rolled Round Bars, Hot Rolled Steel Bars, Steel Round Bars, Square Bars, Hex Bars, Flats, Forged Bars, Rectangular Bars & High Nickel Alloys Bars to meet the customer ultimate requirements. We welcome small quantities. We also offer competitive pricing on small & larger quantity Reducer / Buttweld Reducers.

Send Enquiry

Reducer / Buttweld Reducers

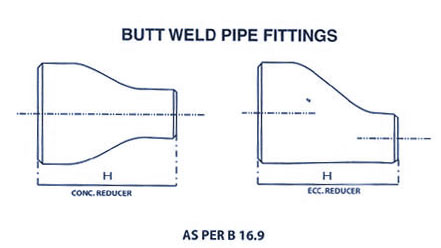

To cater to the needs of different industries across the globe, we unfurl an extensive collection of butt weld pipe fittings. Made from high quality alloy steel, carbon steel, stainless steel and nickel alloys, these butt weld pipe fittings are largely used to prevent fluid leakage and enhance the functionality in an effective manner. We manufacture butt weld pipe fittings in diverse shapes like steel concentric reducer, steel eccentric reducer, stub end and caps at reasonable rates.

Nominal Pipe Size (NPS)	Outside Diameter at Bevel (O/D)		End to End		Nominal Pipe Size (NPS)		Outside Diameter at Bevel (O/D)			End-to-End
	Run	Outlet	H				Run		Outlet	H
¾'' x ½'' ¾'' x 3/8''	26.7 26.7	21.3 17.3	38 38		12'' x 10'' 12'' x 8'' 12'' x 6'' 12'' x 5''		323.8 323.8 323.8 323.8		273.0 219.1 168.3 141.3	203 203 203 203
1'' x ¾'' 1'' x ½''	33.4 33.4	26.7 21.3	51 51
1.1/4'' x 1'' 1.1/4'' x ¾'' 1.1/4'' x ½''	42.2 42.2 42.2	33.4 26.7 21.3	51 51 51		14'' x 12'' 14'' x 10'' 14'' x 8'' 14'' x 6''		355.6 355.6 355.6 355.6		323.8 273.0 219.1 168.3	330 330 330 330
1.1/2'' x 1.1/4'' 1.1/2'' x 1'' 1.1/2'' x ¾'' 1.1/2'' x ½''	48.3 48.3 48.3 46.3	42.2 33.4 26.7 21.3	64 64 64 64		16'' x 14'' 16'' x 12'' 16'' x 10'' 16'' x 8''		406.4 406.4 406.4 406.4		355.6 323.8 273.0 219.1	356 356 356 356
2'' x 1.1/2'' 2'' x 1.1/4'' 2'' x 1'' 2'' x ¾''	60.3 60.3 60.3 60.3	48.3 42.2 33.4 26.7	76 76 76 76		18'' x 16'' 18'' x 14'' 18'' x 12'' 18'' x 10''		457.0 457.0 457.0 457.0		406.4 356.6 323.8 273.0	381 381 381 381
2.1/2'' x 2'' 2.1/2'' x 1.1/2'' 2.1/2'' x 1.1/4'' 2.1/2 x 1''	73.0 73.0 73.0 73.0	60.3 48.3 42.2 33.4	89 89 89 89		20'' x 18'' 20'' x 16'' 20'' x 14'' 20'' x 12''		508.0 508.0 508.0 508.0		457.0 406.4 355.6 323.8	508 508 508 508
3'' x 2.1/2'' 3'' x 2'' 3'' x 1.1/2'' 3'' x 1.1/4''	88.9 88.9 88.9 88.9	73.0 60.3 48.3 42.2	89 89 89 89		22'' x 20'' 22'' x 18'' 22'' x 16'' 22'' x 14''		559.0 559.0 559.0 559.0		508.0 457.0 406.4 355.6	508 508 508 508
3.1/2'' x 3'' 3.1/2'' x 2.1/2'' 3.1/2'' x 2'' 3.1/2'' x 1.1/2''	101.6 101.6 101.6 101.6	88.9 73.0 60.3 48.3	102 102 102 102		24'' x 22'' 24'' x 20'' 24'' x 18'' 24'' x 16''		610.0 610.0 610.0 610.0		559.0 508.0 457.0 406.4	508 508 508 508
4'' x 3.1/2'' 4'' x 3'' 4'' x 2.1/2'' 4'' x 2'' 4'' x 1.1/2''	114.3 114.3 114.3 114.3 114.3	101.6 88.9 73.0 60.3 48.3	102 102 102 102 102		26'' x 24'' 26'' x 22'' 26'' x 20'' 26'' x 18''		660.0 660.0 660.0 660.0		610.0 559.0 508.0 457.0	610 610 610 610
5'' x 4'' 5'' x 3.1/2'' 5'' x 3'' 5'' x 2.1/2'' 5'' x 2''	141.3 141.3 141.3 141.3 141.3	114.3 101.6 88.9 73.0 60.3	127 127 127 127 127		28'' x 26'' 28'' x 24'' 28'' x 20'' 28'' x 18''		711.0 711.0 711.0 711.0		660.0 610.0 508.0 457.0	610 610 610 610
6'' x 5'' 6'' x 4'' 6'' x 3.1/2'' 6'' x 3'' 6'' x 2.1/2''	168.3 168.3 168.3 168.3 168.3	141.3 114.3 101.6 88.9 73.0	140 140 140 140 140		30'' x 28'' 30'' x 26'' 30'' x 24'' 30'' x 20''		762.0 762.0 762.0 762.0		711.0 660.0 610.0 508.0	610 610 610 610
8'' x 6'' 8'' x 5'' 8'' x 4'' 8'' x 3.1/2''	219.1 219.1 219.1 219.1	168.3 141.3 114.3 101.6	152 152 152 152		32'' x 30'' 32'' x 28'' 32'' x 26'' 32'' x 24''		813.0 813.0 813.0 813.0		762.0 711.0 660.0 610.0	610 610 610 610
10'' x 8'' 10'' x 6'' 10'' x 5'' 10'' x 4''	273.0 273.0 273.0 273.0	219.1 168.3 141.3 114.3	178 178 178 178		34'' x 32'' 34'' x 30'' 34'' x 26'' 34'' x 24''		864.0 864.0 864.0 864.0		813.0 762.0 660.0 610.0	610 610 610 610
