Stainless Steel Capillary Tubes Manufacturer In India

Capillary Pipes & Copper Capillary Tubes Manufacturer & Supplier

Vishal Tube is Manufacturer, Supplier of Stainless Steel Capillary Tubes in india, GASCO approved Supplier of SS Capillary Tubes Price Per KG in India, We are Distributor of high grade quality Stainless Steel Capillary Tubes, Vishal Tube is largest stockholder of Sandvik SS Capillary Tubes in india, Our SS Capillary Tubes reduces wear and tear on parts and extends operating times. It also reduces contamination and adhesion on the surfaces of process equipment. We offer Stainless Steel Capillary Tubes in different type of thickness, sizes and shapes as per our clients requirements, we can provide AISI SS Capillary Tubes at Dealer price which helps us to prove one of the best Exporter of Stainless Steel Capillary Tubes in India.

Send Enquiry

Stainless Steel Capillary Tube Specification

Dimensions : ASTM, ASME and API

Standard : ASTM, DIN, GB, AISI, JIS, ISO, etc other International Standards

Material Grade : 304, 304L/H, 304LN, 309H, 310/S/H, 316, 316L/H, 316TI, 317, 317L, 321/H, 347/H 410, 446, 904L

Range : 0.35mm to 6.35mm OD in thickness ranging from 0.1mm to 1.2mm.

Length : As per Customer Requirement

Thickness : 1mm to 20mm, SCH 5/5S, 10/10S, 20/20S, 40/40S, 80/80S, 120/120S, 160/160S as per ANSI B36.19/36.10

Outer Diameter : 0.3 –12.0 mm

W.T : 0.08 – 0.2 mm

Type : As Welded, EFW, ERW, Seamless, Semi Seamless, Bead Removed

Form : Round, Strait, Hydraulic etc.

End : Plain end, Bevelled end

SS 304, 304L/H, 304LN Capillary Tubes, Stainless Steel Seamless and Welded Capillary Tubes Suppliers

DIN 1.4539 SS Electropolished Capillary Tubes, Stainless Steel 317 / 317L Capillary Tubing Leading Manufacturers.

Copper Capillary Tubes Chemical Composition
DHP Copper	Phosphorus - 0.015 to 0.035 %
	Copper - Balance
DLP Copper	Phosphorus - 0.05 to 0.012 %
	Copper - Balance
TEMPER	H, HH. ¼ H, O (soft annealed ),
	OL (Light annaealed)

Gauge	Outside Diameter Tolerance mm	Regular Wall (RW) mm	Thin Wall (TW) mm	Extra Thin Wall (XTW) mm	Ultra Thin Wall (UTW) mm
30	0.304 - 0.317	0.064 - 0.089
29	o.330 - 0.342	0.064 - 0.089
28	0.355 - 0.368	0.076 - 0.102
27	0.406 - 0.419	0.089 - 0.115	0.064 - 0.089
26	0.457 - 0.469	0.089 - 0.114
25	0.508 - 0.520	0.115 - 0.140	0.089 - 0.114
24	0.558 - 0.571	0.114 - 0.140	0.089 - 0.114		0.051 - 0.102
23	0.635 - 0.647	0.140 - 0.165	0.089 - 0.114		0.051 - 0.102
22	0.711 - 0.723	0.140 - 0.165	0.096 - 0.121	0.077 - 0.102	0.051 - 0.102
21	0.812 - 0.825	0.140 - 0.165	0.102 - 0.127		0.051 - 0.102
20	0.901 - 0.914	0.108 - 0.165	0.108 - 0.134
19	1.054 - 1.079	0.166 - 0.216	0.102 - 0.140	0.070 - 0.108
18	1.257 - 1.282	0.191 - 0.241	0.127 - 0.165	0.083 - 0.121	0.051 - 0.102
17	1.460 - 1.485	0.177 - 0.229	0.115 - 0.152	0.083 - 0.127	0.057 - 0.102
16	1.638 - 1.663	0.204 - 0.254	0.127 - 0.165	0.096 - 0.133	0.070 - 0.121
15	1.816 - 1.841	0.204 - 0.254	0.127 - 0.165	0.096 - 0.134	0.070 - 0.121
14	2.082 - 2.133	0.216 - 0.292	0.165 - 0.229	0.114 - 0.165	0.076 - 0.134
13	2.387 - 2.438	0.267 - 0.343	0.191 - 0.267
12	2.743 - 2.749	0.267 - 0.321
11	3.023 - 3.073	0.293 - 0.368	0.216 - 0.292
10	3.378 - 3.429	0.318 - 0.394	0.216 - 0.292

N.B.
Any intermediate size can be made on request.
All Sizes will be supplied in sufficiently hard condition and tested for the stiffness.

Capillary Pipes & Copper Capillary Tubes buy at Factory Price

Vishal Tube Capillary Pipes & Copper Capillary Tubes Price List

• 316L Welded Stainless Steel Tubing
  US $3.93-8.89 / Kilogram (FOB Price)
• Stainless steel welded tubing/pipe
  US $1950-5500 / Ton (FOB Price)
• 1/2 stainless steel tubing
  US $1950-5500 / Ton (FOB Price)
• 316 Stainless Steel Tubing/Hydraulic Stainless Steel Tube
  US $1000-10000 / Ton (FOB Price)
• Stainless Steel Pipe 201,304,Stainless Steel Tubing,Best quality and low price
  US $1800-3100 / Ton (FOB Price)
• 12mm-219mm high quality welded Stainless steel tubing
  US $2-10 / Kilogram (FOB Price)
• 304 Stainless Steel Tubing
  US $1-4000 / Ton (FOB Price)
• Large Diameter 304 Stainless Steel Tubing Factory Price
  US $1000-3000 / Ton (FOB Price)
• stainless steel tubing
  US $1000-3000 / Ton (FOB Price)
• 316 stainless steel tubing
  US $1000-4000 / Ton (FOB Price)
• stainless steel tubing TP316
  US $1000-8000 / Ton (FOB Price)
• ASTM A213 T11 38 stainless steel tubing
  US $2000-3700 / Ton (FOB Price)
• 904L stainless steel tubing
  US $1650-3000 / Ton (FOB Price)
• SCH80 seamless stainless steel tubing
  US $1650-3000 / Ton (FOB Price)
• ss304l tubing ,304l stainless steel tubing
  US $1500-3000 / Kilogram (FOB Price)
• seamless stainless steel tubing
  US $4000-8000
• astm a316l stainless steel tube/thin wall stainless steel tubing
  US $1000-10000 / Ton (FOB Price)
• ASTM 316L High Pressure Stainless Steel Tubing
  US $3000-4800 / Metric Ton (FOB Price)
• small diameter stainless steel tubing
  US $0.9-3.0 / Meter (FOB Price)

Capillary Pipes & Copper Capillary Tubes Packaging

Packed Capillary Pipes & Copper Capillary Tubes in Vishal Tube factory, Mumbai

Packed Capillary Pipes & Copper Capillary Tubes in Vishal Tube factory, Mumbai

Depending on the size of the diameter of the pipes & tubes these individually (large diameter Capillary Pipes & Copper Capillary Tubes) or in bundles (small diameter Capillary Pipes & Copper Capillary Tubes) are transported. Capillary Pipes & Copper Capillary Tubes in bunches are taken together with metal strips or wires in the transverse direction. It is important to make sure that the strapping is very firm, so that the individual pipes can not move against each other and thereby suffer damage. Subject to transport, duration and turnover can be wrapped in eg plastic jute fabric and is provided at the bundle ends and stop points with sheet metal bundled pipes. specialty pipes shall be protected against corrosion and are usually coated or in appropriately chosen cases or wood-corrugated structures packaged. Specialty coatings, such as of PE, require padding to ensure that the protective layer is not damaged. tubes (center tubes) with sensitive inner surfaces, threads or bevel (tapered edge) are on the ends of the protection provided with caps made ​​of plastic or metal.

We pack Capillary Pipes & Copper Capillary Tubes in a proper way to protect from moisture.

Marking of packages

Through a correct and complete marking of packaging will create the conditions to avoid misuse, accidents, wrong delivery, mass and volume losses and customs penalties. We do marking very clear and precise on Capillary Pipes & Copper Capillary Tubes. You should contrast clearly with the package, usually it is applied in black color.

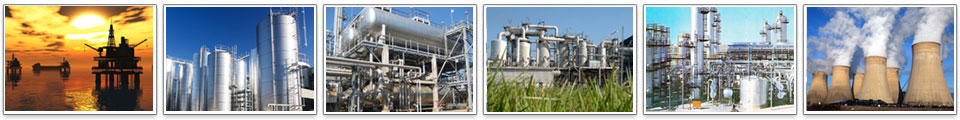

Capillary Pipes & Copper Capillary Tubes uses & Application

• Chemical
• Petrochemical
• Refineries
• Fertilizers
• Power Plant
• Nuclear Power
• Oil & Gas
• Paper
• Breweries
• Cement
• Sugar
• Oil Mills
• Mining
• Construction
• Shipbuilding
• Steel Plant
• Offshore
• Defence
• Ports
• Railway
• Engineering Co. & Government Org. etc

Capillary Pipes & Copper Capillary Tubes other available grades

Stainless Steel Grades

Grade	Material
303	Stainless Steel Bar Stock
304	Stainless Steel Tubing
304L	Stainless Steel Tubing
316	Stainless Steel Tubing
316L	Stainless Steel Tubing
321	Stainless Steel Tubing
347	Stainless Steel Tubing
430	Stainless Steel Tubing
Other Grades	Call for Availability of Other Stainless Steel Tubing Alloys
