ASME SA210 / ASTM A210 Grade A1 Boiler Tubes Manufacturer In India

ASTM A210 Grade A1 Boiler Tubes Distributors

ASTM A210 Grade A1 Boiler Tubes Updated Price List in Mumbai(Maharashtra), Banglore(Karnataka), Kakinada, India

Vishal Tube are Stocking extensive range of ASTM A210 GR. A1 Boiler Tubes Exporter In India, Professional Stockist and Stockholder of ASTM A210 Boiler Tubes, ASTM A210 Grade A1 Boiler Tubes Wholesaler, Check Latest Price list 2018-2019 of SABIC approved exporter of ASTM A210/ASME SA210 Seamless Medium Carbon Steel Boiler and Superheater Tubes in Chennai(Tamilnadu), Pune, Banglore(Karnataka), Kakinada, Kerala, MP(Madhya Pradesh) and India. ASME SA210 GR.A1 Seamless Steel Boiler Tube Manufacturer In Mumbai(Maharashtra).

We are Supplier and Distributor of ASME SA 210 Grade A1 Steam Boiler Tubes, India’s Largest Stockholder of ASTM A210 GR A1 Fluid Seamless Steel Boiler Tube offer best Price Per KG in Dubai, Thailand (Bangkok), Venezuela, Iran, India. We offers quality ASME SA210 / ASTM A210 Boiler Tube and Tubing are available in various grades and specifications. These ASTM A210 Heat Exchanger Tubes are made from the finest quality Seamless steel and are available in different Size, shapes, dimensions, thickness, grades and hardness. Our ranges of ASTM A210 Condensor Boiler Tubes are widely appreciated for their optimum.

Send Enquiry



ASTM A210 GR.A1 Boiler Tubes Specification

ASME Spec.	ASME Grade	ERW or Smls.	Description	Typical uses
SA-210	A1	Smls.	Medium carbon steel – C=0.27 max.	Waterwalls, economizers, superheaters
SA-210	C	Smls.	Medium carbon steel – C=0.35 max.	Waterwalls, economizers, superheaters

High Temperature Seamless Tube	ASTM A210 Gr. B/C, API 5L Gr. B, ASTM A53 Gr. B
Heat Exchanger Seamless Tube	ASTM A210
Low Temperature Seamless Tube	ASTM A333 Gr. 3/6
High Yield Seamless Tube	ISO 3183 Gr.L245, L290, L320, L360, L390, L415, L450, L485
Atmospheric & Low Temp EFW Tubes	ASTM A671 Gr. CC60/CC65/CC70
High Pressure & Moderate Temp EFW Tubes	ASTM A672 Gr. B60/B65/B70/C55/C60/C65/C70
High Yield ERW/SAW Tube	ISO 3183 Gr.L245, L290, L320, L360, L390, L415, L450, L485

ASTM A210 GR.A1 Boiler Tubes Grades and Size Range

ASTM A210 Grade B Carbon Steel Tubes

1. Size Range : 4" to 26"
2. Schedules : 20, 30, 40, Standard (STD), Extra Heavy (XH), 80, 100, 120, 140, 160, XXH & heavier
3. Grades : ASTM A210
4. Applications: Oil Refineries, Petrochemicals, Power Generation (Nuclear/Thermal), Steel, Sugar, Boiler Equipments, Pressure Vessels and General Engineering Purposes

End Connections for Line Tubes: Plain, Bevel, Screwed, Threaded

Type: ERW / Welded / Fabricated / CDW

Form: Round Tubes, Square Tubes, Rectangular Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes

Length: Single Random, Double Random & Required Length, Custom Size – 12 Meter lengths

End: Plain End, Beveled End, Treaded

End Protection: Plastic Caps

Outside Coating: Black Painting, Anti-Corrosion Oil, Galvanised Finish, Finish as per customer Requirements

Delivery Condition: Annealed, Normalized, Normalized and Tempered

Inspection, Test Reports: Chemical Composition inspection, Mechanical Properties Test(Tensile Strength, Yield Strength, Elongation, Flaring, Flattening, Hardness, Impact Test), Surface and Dimension Test, No-destructive Test, Hydrostatic Test

Note:

• Mill test certificates will be issued according to EN10204.3
• All tubes shall be supplied as per applicable ASTM Specification.
• The tubes Shall be Seamless and the testing shall be as per A 450 / A450M.

ASTM A210 GR.A1 Boiler Tubes Packaging & Shipping

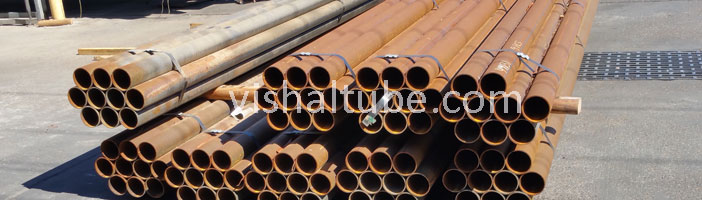

ASTM A210 Boiler Tube in Vishal Tube, Mumbai

ASTM A210 Boiler Tube, Mumbai

ASTM A210 Boiler Tubes are loose or in bundles tightened with Iron Strips.
Special packings: Metal or Wooden Cases, Pallets etc.

• Packed in wooden crates, wrapped in plastic, and suitably protected for sea-worthly delivery or as requested.
• Both ends of each crate will indicate the order no., heat no., dimensions, weight and bundles.

Chemical Composition

Grade	Tensile Strength(Mpa)	Yield Strength(Mpa)	Elongation (%)
A1	≥ 415	≥ 255	≥ 30
C	≥ 485	≥ 275	≥ 30

ASTM A210 Tubes Yield and Tensile Strength

Grade	C(Max)	Mn	Si(Min)	P(Max)	S(Max)
A1	0.27	Max.0.93	0.10	0.035	0.035
C	0.35	0.29~1.06	0.10	0.035	0.035

ASTM A210 Outside Diameter & Tolerance

Hot rolled	Outside Diameter, mm	Tolerance, mm
	OD≤101.6	+0.4/-0.8
	101.6＜OD≤127	+0.4/-1.2
Cold Drawn	Outside Diameter, mm	Tolerance, mm
	OD＜25.4	±0.10
	25.4≤OD≤38.1	±0.15
	38.1＜OD＜50.8	±0.20
	50.8≤OD＜63.5	±0.25
	63.5≤OD＜76.2	±0.30
	76.2≤OD≤101.6	±0.38
	101.6＜OD≤127	+0.38/-0.64

ASTM A210 Wall thickness & Tolerance

Hot rolled	Outside Diameter , mm	Tolerance, %
	OD≤101.6, WT≤2.4	+40/-0
	OD≤101.6, 2.4＜WT≤3.8	+35/-0
	OD≤101.6, 3.8＜WT≤4.6	+33/-0
	OD≤101.6, WT>4.6	+28/-0
	OD>101.6, 2.4＜WT≤3.8	+35/-0
	OD>101.6, 3.8＜WT≤4.6	+33/-0
	OD>101.6, WT>4.6	+28/-0
Cold Drawn	Outside Diameter , mm	Tolerance, %
	OD≤38.1	+20/-0
	OD>38.1	+22/-0
